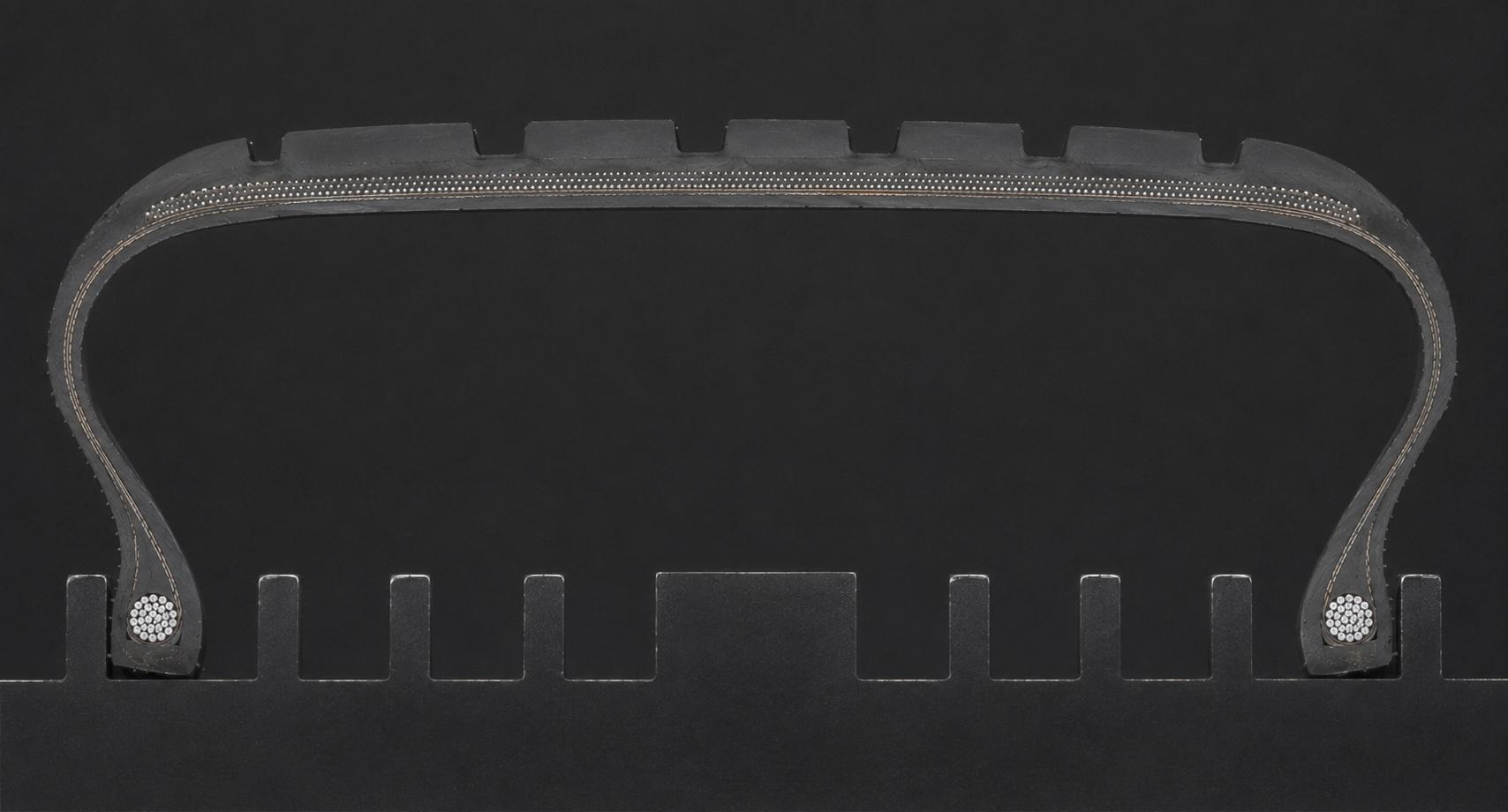

01 · Physical Section
Cut-section photograph
A physical tyre cut-section is photographed under controlled conditions.
All products
tAIre Platform — Capture
tAIre Section Scanner
An AI-powered section digitization tool that converts tyre cut-section images into structured engineering geometry and design parameters.
Accelerate tyre benchmarking and reverse-engineering activities by transforming physical section data into reusable digital inputs for design, comparison and optimization.
Problem Solved
Physical sections are hard to bring back into engineering workflows
Benchmarking and reverse-engineering activities rely on physical tyre cut-sections, which are difficult to measure, compare and reuse as structured inputs for engineering workflows without extensive manual digitization work.
Platform Position
Physical Section to Digital Geometry
tAIre Section Scanner sits alongside Tyre Geometry in the Moonar platform flow, with an inbound path from Manufacturing and Validation: it converts a physical, manufactured tyre section back into structured digital geometry for reuse in design and optimization workflows.
Manufacturing and ValidationtAIre Section ScannerTyre Geometry
From Photo to Geometry
Physical section to digital CAD, in three steps
tAIre Section Scanner turns a photograph of a physical tyre cut-section into structured, reusable digital geometry.

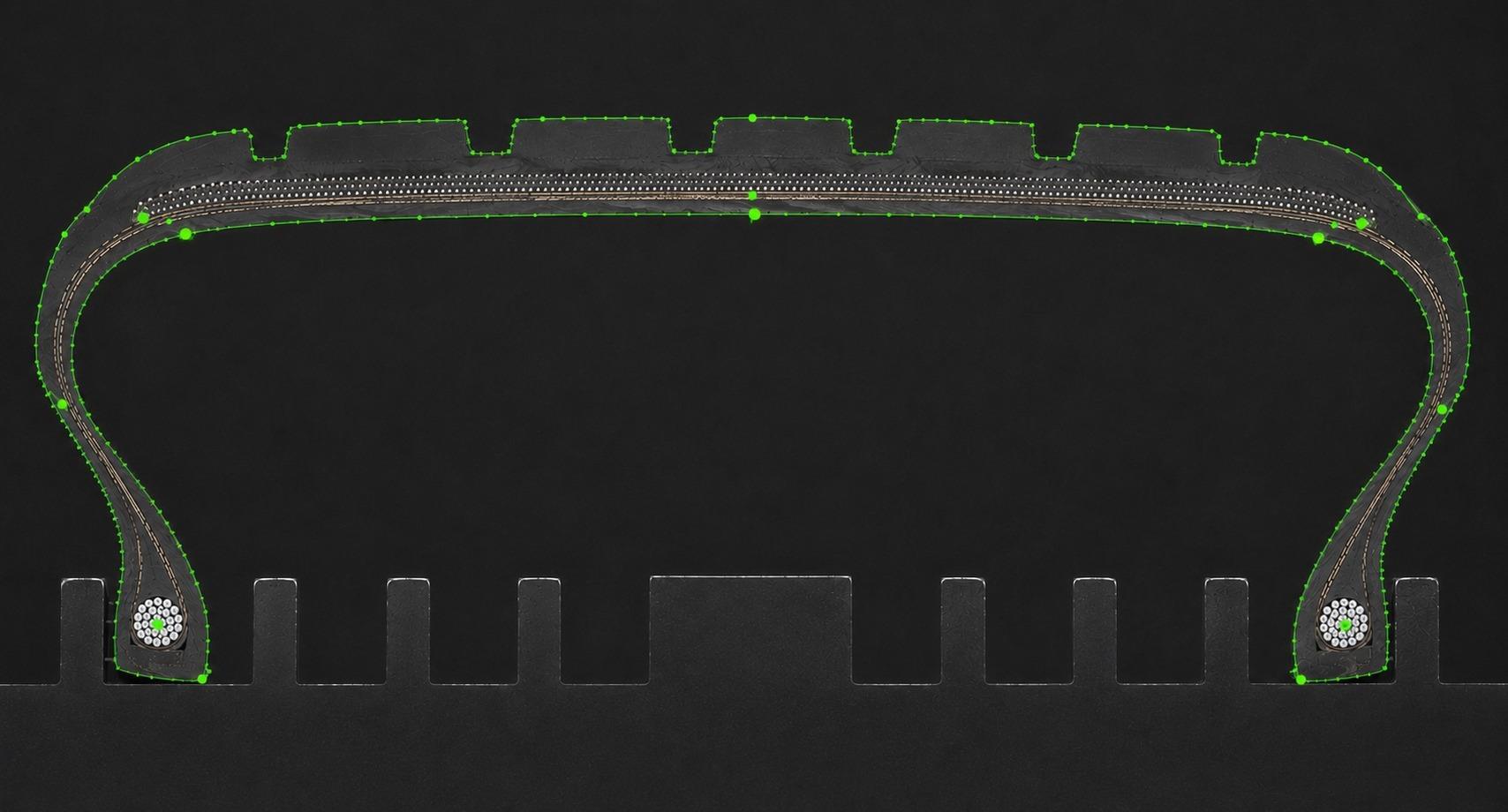

02 · Computer Vision
Automated contour detection
tAIre Section Scanner detects component contours, reinforcement layers and key engineering points.

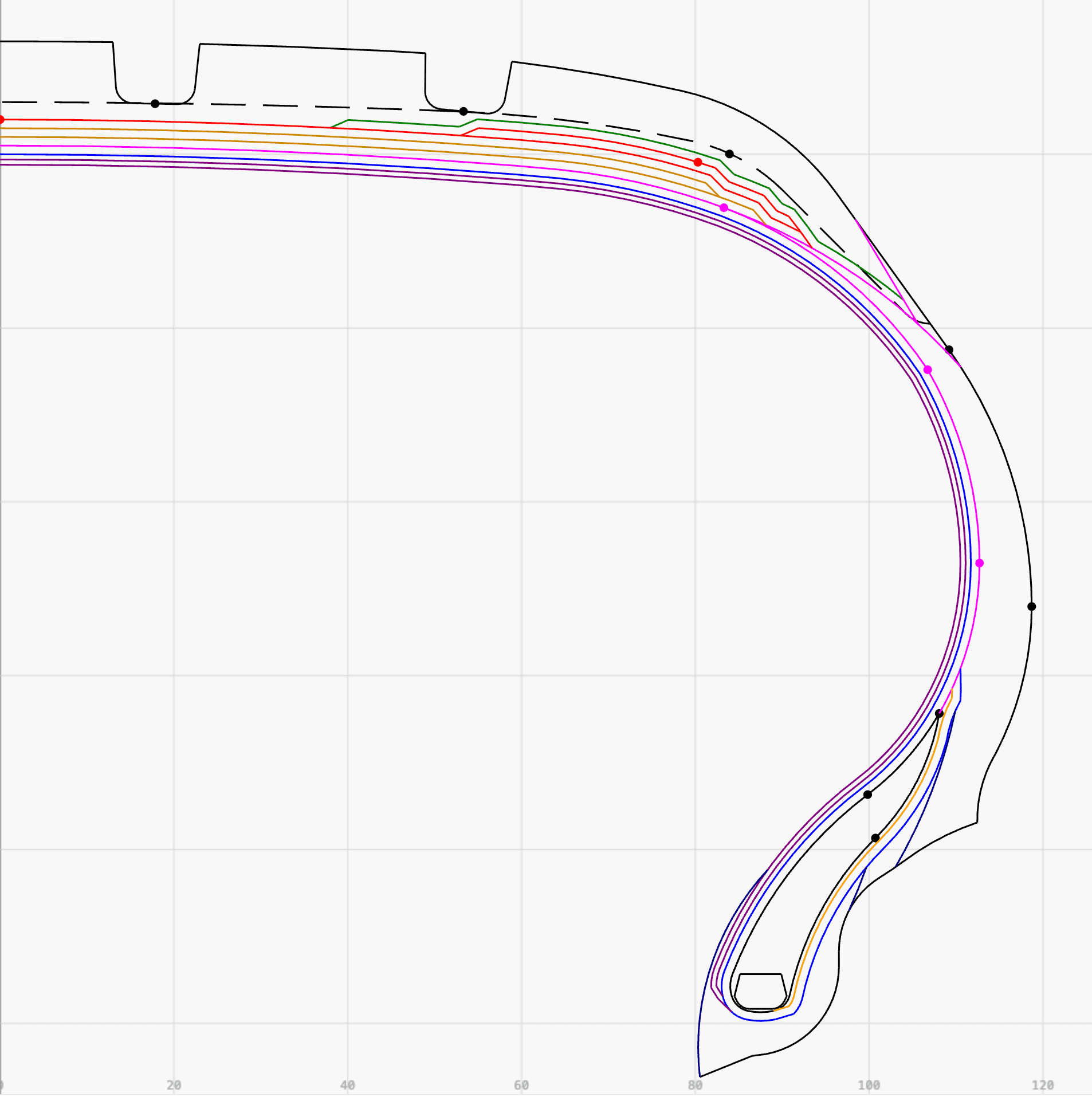

03 · CAD Construction
Digital geometry in Section Designer +
Detected geometry is reconstructed as structured, dimensioned CAD geometry in tAIre Designer Suite.
Workflow
How it works
- 01
Acquisition of a tyre cut-section image
- 02
Image calibration and scale definition
- 03
Identification of external and internal contours
- 04
Detection of relevant tyre components
- 05
Geometric reconstruction and contour optimization
- 06
Identification of key engineering points
- 07
Extraction of design parameters
- 08
Export to Moonar design workflows
Inputs
- High-resolution tyre cut-section image
- Photograph or scan of a physical section
- Scale or calibration reference
- Optional manually identified reference points
- Optional tyre size and basic specification data
Outputs
- Digitized tyre section contour
- Structured component geometries
- Optimized engineering curves
- Relevant geometric points
- Dimensional parameters
- Input parameters for tAIre Designer Suite
- Comparison-ready digital section
- DXF or other engineering file formats, where supported
Enterprise Fit
Configurability, integration and deployment
Configurability
Calibrated to your section formats
Calibration references and optional manually identified reference points allow the system to be adapted to different image sources, section formats and tyre size conventions.
Integration
Feeds directly into tAIre Designer Suite
Extracted geometry and design parameters are exported as input parameters for tAIre Designer Suite, or as DXF and other engineering file formats where supported, for use in existing CAD and PLM workflows.
Deployment
Cloud or on-premise
Runs in a customer-managed cloud environment or on-premise infrastructure, with role-based access and security requirements adapted to internal IT policy.
The tAIre Platform
Capture, design and predict within one connected platform
Capture · CurrenttAIre Section ScannerPhysical tyre to digital geometry
Discuss tAIre Section Scanner with Moonar's engineering team
Talk to our engineering team about your benchmarking process, available section imagery and how digitized geometry should feed into your design workflow.
