An integrated engineering suite that automates mould and section design while using AI to translate component geometry between green and cured states.
Predict extrusion profiles for tread and sidewall from theoretical geometry, calibrated with real profile data from tyres in production — within one consistent, bidirectional engineering workflow.
Tyre mould and section geometry are typically developed manually, repeating similar engineering steps for each specification and depending on the experience of a small group of engineers. This slows down development and makes it difficult to maintain geometric consistency between mould and section design.
Import specification data, alignment data and customer-specific design rules
Calculate the specification matrix and generate tyre mould geometry with Mould Designer +
Develop flat, unrolled theoretical profiles of tread and sidewall with Section Designer +
Predict extrusion profiles using AI calibrated against real profile data from tyres in production
Check geometric consistency between mould and section outputs
Export dimensioned DXF files and structured geometry data

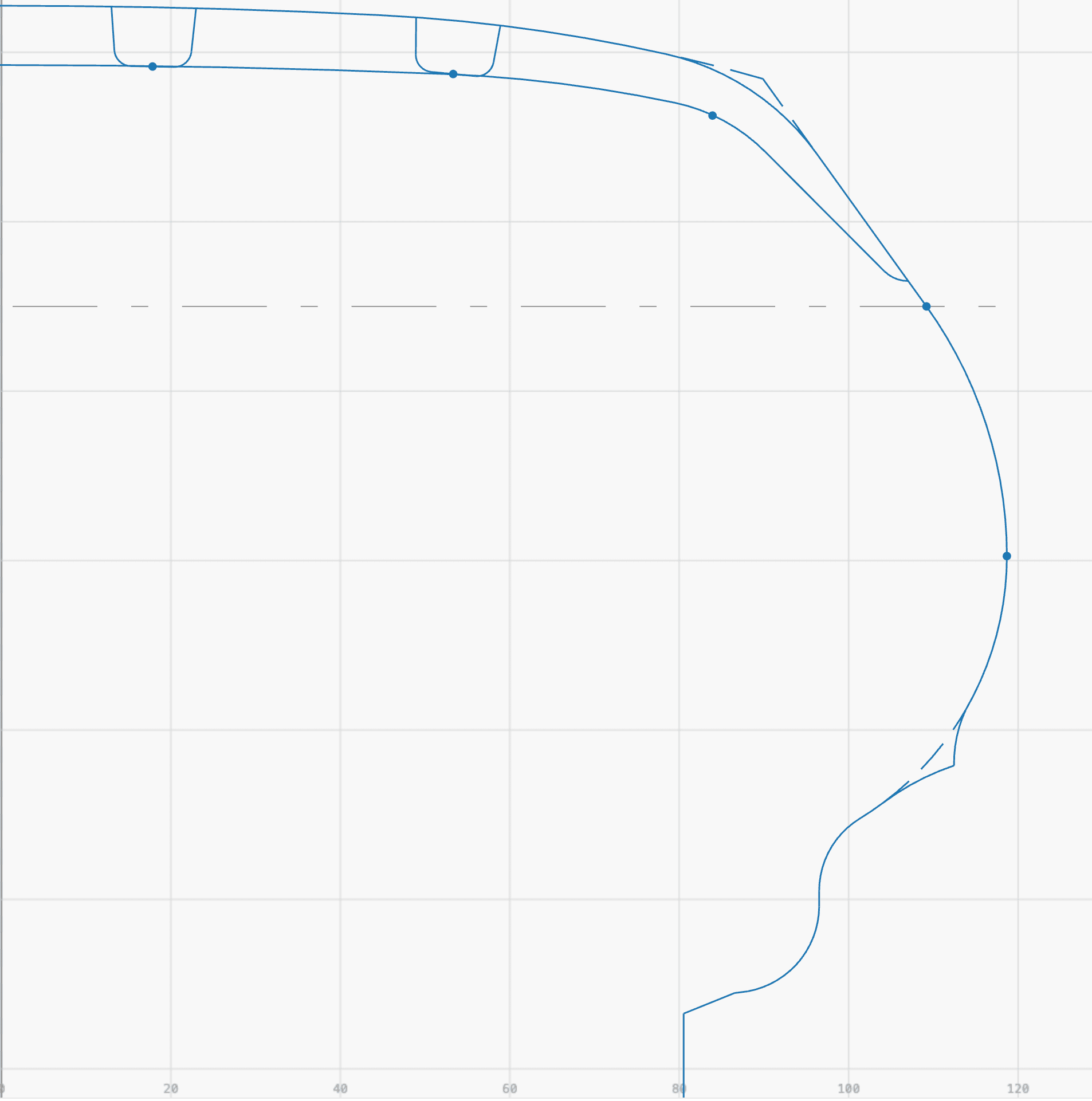

Mould Designer + transforms tyre alignment data and engineering parameters into automatically generated mould geometries. Customer-specific rules and dimensional constraints can be incorporated into the workflow, producing consistent engineering outputs and dimensioned DXF files ready for downstream development.
Reduce repetitive CAD work, standardize mould development and generate consistent, dimensioned DXF outputs.
Section Designer + calculates the specification matrix and develops flat, unrolled theoretical profiles of the tread and sidewall from the cured tyre section. An AI model then predicts the corresponding extrusion profiles, calibrated against real profile data measured from tyres in normal production, enabling bidirectional workflows between specification data, tyre geometry and extrusion profiles.
Predict extrusion profiles from theoretical tread and sidewall geometry, calibrated against real profile data from tyres in normal production.
Section Designer + first develops flat, unrolled theoretical profiles of the tread and sidewall from the cured tyre section. An AI model then predicts the corresponding extrusion profiles, calibrated against real profile data measured from tyres in normal production.
Each deployment is configured with a customer's specific design rules and dimensional constraints, so generated mould and section geometry reflects internal engineering standards from the first iteration.
Mould and section geometry is exported as dimensioned DXF files and structured data for use in existing CAD, PLM and mould manufacturing workflows.
Runs in a customer-managed cloud environment or on-premise infrastructure, with role-based access and security requirements adapted to internal IT policy.
Talk to our engineering team about your mould and section design workflow, existing design rules and CAD or PLM environment.
Request a Demo
